QgsAttributesFormLayoutView Class Reference

Graphical representation for the form layout while configuring attributes forms. More...

#include <qgsattributesformproperties.h>

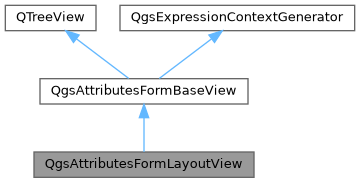

Inheritance diagram for QgsAttributesFormLayoutView:

Public Member Functions
	QgsAttributesFormLayoutView (QgsVectorLayer *layer, QWidget *parent=nullptr)
	Constructor for QgsAttributesFormLayoutView, with the given parent.
QgsAttributesFormLayoutModel *	formLayoutModel () const
	Access the underlying QgsAttributesFormLayoutModel model.
void	setModel (QAbstractItemModel *model) override
	Overridden setModel() from base class. Only QgsAttributesFormLayoutModel is an acceptable model.
Public Member Functions inherited from QgsAttributesFormBaseView
	QgsAttributesFormBaseView (QgsVectorLayer *layer, QWidget *parent=nullptr)
	Constructor for QgsAttributesFormBaseView, with the given parent.
QgsExpressionContext	createExpressionContext () const override
	This method needs to be reimplemented in all classes which implement this interface and return an expression context.
Public Member Functions inherited from QgsExpressionContextGenerator
virtual	~QgsExpressionContextGenerator ()=default

Protected Member Functions
void	dragEnterEvent (QDragEnterEvent *event) override
void	dragMoveEvent (QDragMoveEvent *event) override
	Is called when mouse is moved over attributes tree before a drop event.
void	dropEvent (QDropEvent *event) override

Additional Inherited Members
Public Slots inherited from QgsAttributesFormBaseView
void	selectFirstMatchingItem (const QgsAttributesFormData::AttributesFormItemType &itemType, const QString &itemId)
	Selects the first item that matches a itemType and a itemId.
Protected Attributes inherited from QgsAttributesFormBaseView
QgsVectorLayer *	mLayer = nullptr

Detailed Description

Graphical representation for the form layout while configuring attributes forms.

Warning

Not part of stable API and may change in future QGIS releases.

Since

QGIS 3.44

Definition at line 265 of file qgsattributesformproperties.h.

Constructor & Destructor Documentation

QgsAttributesFormLayoutView()

QgsAttributesFormLayoutView::QgsAttributesFormLayoutView ( QgsVectorLayer *  layer, QWidget *  parent = nullptr  )

explicit

Constructor for QgsAttributesFormLayoutView, with the given parent.

The given layer is used to build an expression context with the layer scope.

Definition at line 922 of file qgsattributesformproperties.cpp.

Member Function Documentation

dragEnterEvent()

void QgsAttributesFormLayoutView::dragEnterEvent ( QDragEnterEvent *  event )

overrideprotected

Definition at line 970 of file qgsattributesformproperties.cpp.

dragMoveEvent()

void QgsAttributesFormLayoutView::dragMoveEvent ( QDragMoveEvent *  event )

overrideprotected

Is called when mouse is moved over attributes tree before a drop event.

Definition at line 995 of file qgsattributesformproperties.cpp.

dropEvent()

void QgsAttributesFormLayoutView::dropEvent ( QDropEvent *  event )

overrideprotected

Definition at line 1016 of file qgsattributesformproperties.cpp.

formLayoutModel()

QgsAttributesFormLayoutModel * QgsAttributesFormLayoutView::formLayoutModel

(

)

const

Access the underlying QgsAttributesFormLayoutModel model.

Definition at line 940 of file qgsattributesformproperties.cpp.

setModel()

void QgsAttributesFormLayoutView::setModel ( QAbstractItemModel *  model )

override

Overridden setModel() from base class. Only QgsAttributesFormLayoutModel is an acceptable model.

Definition at line 928 of file qgsattributesformproperties.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.43.0+git20250601+261ee7da134+99sid/src/gui/vector/qgsattributesformproperties.h
• /build/qgis-3.43.0+git20250601+261ee7da134+99sid/src/gui/vector/qgsattributesformproperties.cpp
