QgsAttributesAvailableWidgetsView Class Reference

Graphical representation for the available widgets while configuring attributes forms. More...

#include <qgsattributesformproperties.h>

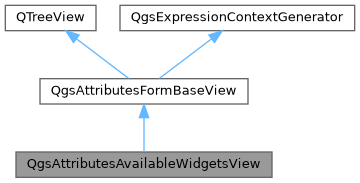

Inheritance diagram for QgsAttributesAvailableWidgetsView:

Public Member Functions
	QgsAttributesAvailableWidgetsView (QgsVectorLayer *layer, QWidget *parent=nullptr)
	Constructor for QgsAttributesAvailableWidgetsView, with the given parent.
QgsAttributesAvailableWidgetsModel *	availableWidgetsModel () const
	Access the underlying QgsAttributesAvailableWidgetsModel model.
void	setModel (QAbstractItemModel *model) override
	Overridden setModel() from base class. Only QgsAttributesAvailableWidgetsModel is an acceptable model.
Public Member Functions inherited from QgsAttributesFormBaseView
	QgsAttributesFormBaseView (QgsVectorLayer *layer, QWidget *parent=nullptr)
	Constructor for QgsAttributesFormBaseView, with the given parent.
QgsExpressionContext	createExpressionContext () const override
	This method needs to be reimplemented in all classes which implement this interface and return an expression context.
Public Member Functions inherited from QgsExpressionContextGenerator
virtual	~QgsExpressionContextGenerator ()=default

Additional Inherited Members
Public Slots inherited from QgsAttributesFormBaseView
void	selectFirstMatchingItem (const QgsAttributesFormData::AttributesFormItemType &itemType, const QString &itemId)
	Selects the first item that matches a itemType and a itemId.
Protected Attributes inherited from QgsAttributesFormBaseView
QgsVectorLayer *	mLayer = nullptr

Detailed Description

Graphical representation for the available widgets while configuring attributes forms.

Warning

Not part of stable API and may change in future QGIS releases.

Since

QGIS 3.44

Definition at line 235 of file qgsattributesformproperties.h.

Constructor & Destructor Documentation

QgsAttributesAvailableWidgetsView()

QgsAttributesAvailableWidgetsView::QgsAttributesAvailableWidgetsView ( QgsVectorLayer *  layer, QWidget *  parent = nullptr  )

explicit

Constructor for QgsAttributesAvailableWidgetsView, with the given parent.

The given layer is used to build an expression context with the layer scope.

Definition at line 902 of file qgsattributesformproperties.cpp.

Member Function Documentation

availableWidgetsModel()

QgsAttributesAvailableWidgetsModel * QgsAttributesAvailableWidgetsView::availableWidgetsModel

(

)

const

Access the underlying QgsAttributesAvailableWidgetsModel model.

Definition at line 916 of file qgsattributesformproperties.cpp.

setModel()

void QgsAttributesAvailableWidgetsView::setModel ( QAbstractItemModel *  model )

override

Overridden setModel() from base class. Only QgsAttributesAvailableWidgetsModel is an acceptable model.

Definition at line 907 of file qgsattributesformproperties.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.43.0+git20250603+0cdc48caa8d+99sid/src/gui/vector/qgsattributesformproperties.h
• /build/qgis-3.43.0+git20250603+0cdc48caa8d+99sid/src/gui/vector/qgsattributesformproperties.cpp
